IELTS graph 320 - How electricity is generated in a hydroelectric power station

IELTS Academic Writing Task 1/ Graph Writing - Diagram:

You should spend about 20 minutes on this task.

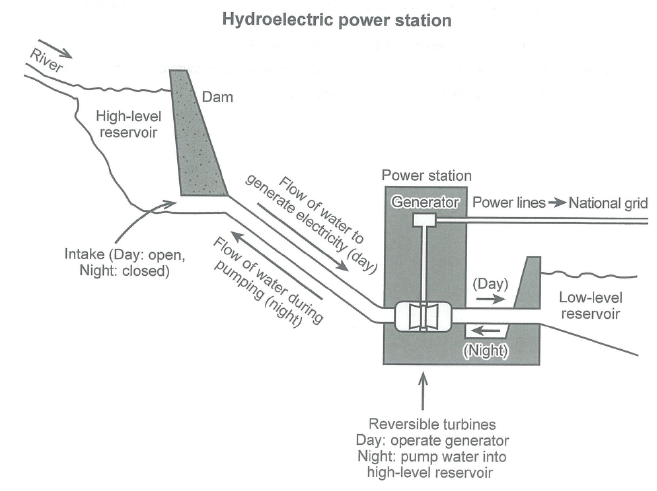

The diagram below shows how electricity is generated in a hydroelectric power station.

Summarize the information by selecting and reporting the main features, and make comparisons where relevant.

Write at least 150 words.

Map - how electricity is generated in a hydroelectric power station



Model Answer:

The diagram outlines the process of electricity production in a hydroelectric power station. The process begins when the water flows from the river into a high-level reservoir and ends with the transmission of electricity to the national grid.

In general, the process is broadly distributed into day and night stages with the daylight stages involving electricity production from a river and storage of water in a reservoir. At night, the water flows back in the opposite direction towards an initial reservoir and the river.

The day stage of the process involves channelling the river water into a high-level reservoir backed up by a dam. There is an intake area leading to the power station that opens during the day and closes at night. Water flows during the day to generate electricity through the power station turbines. The generated electricity is then sent to a national grid through power lines while the excess water runs to a low-level reservoir.

During the night stage, the water stored in the low-level reservoir is reverted to the power station and the turbines of the generator pump it back into the high-level reservoir which is closed during the night. The river water is stored at the upper level and later it flows down, starting the cycle again.

1 1 1 1 1 1 1 1 1 1 Rating 3.99 (106 Votes)

Mina
This diagram explains how water is used to generate electricity in a hydroelectric power station.

Overall, there are two main different functionalities of how the water is processed at day time and night time. The process of generating electricity begins as soon as the rater water flows into a high-level reservoir, and it ends with the transmission of electricity to the national grid.

After collecting water from natural resources, in the daytime, the process starts with the intake of water from the dam flowing into a power station. After that, the water is pumped into a generator which produces and distributes electricity through power lines. The leftover water then is moved to the low-level reservoir.

At night, on the other hand, the water from the low-level reservoir is pumped back through reversible turbines found in the power station. During the nighttime, the water is pumped into the high-level reservoir. It helps generate electricity which is then supplied to the electricity generator.

Riken Tamang
How much did you get by this madam?
Uttam Dulal
The diagram depicts the process of electricity production using hydropower.

Overall, hydropower has to run 24 hours a day in order to finally generate electricity and a river has always been the most important source for producing electricity.

To begin with, a certain volume of river water is stored in a high-level reservoir. Then, a huge dam stops the water to flow away during the night. In the daytime, the dam is opened to a certain level, so that the high force of the water could flow down which helps the reversible turbine to be thrust and which will eventually lead the generator to be powered and produce electricity supplying it to the transmission power lines before adding it to the national grid.

In the meantime, the high volume of water that thrusts the turbine is stored in a low-level container and it is pumped up all the way to the high-level reservoir during the night so that the same water could be used again in generating the electricity the next day during the day time.

Maine Jake
The design presents the method of electricity generation in a hydroelectric power station. The leading part of the process is done in the power station which generates electricity. The station has three main sections to produce electricity - the high-level reservoir, power station and the low-level reservoir - that use water from the river to produce electricity, and the produced electricity is then transferred to the national grid.

Initially, the river water flows into the dam through the high-level reservoir. This flow of water generates electricity in the daytime, and this water is stored in the turbine. The turbine helps to operate a generator in the daytime. During the night phase, the excess water saved in the low-level reservoir is returned to the turbine. Then the water is sent back into the low-level reservoir which remains closed at night. This flow of water helps the power station produce electricity.

The generated electricity is then sent to the national grid through power lines while the excess water runs to a low-level reservoir.

Anu
The diagram shows the process of electricity production in a hydroelectric power station. The main part of the process is done in the power station which produces electricity. Basically, the station has three main sections to produce electricity - the high-level reservoir, power station and the low-level reservoir that use water from the river to produce electricity and this produced electricity is transferred to the national grid.

Initially, the river water flows into Dam through the high-level reservoir. This flow of water generates electricity at day and this water is stored in the turbine. The turbine helps to operate a generator in the daytime. During the night phase, the excess water saved in low-level reservoir is returned to the turbine. Then the water is sent back into the low-level reservoir which remains closed at night. This flow of water helps the power station produce electricity.

The generated electricity is then sent to the national grid through power lines while the excess water runs to a low-level reservoir.

Kasun Madusanka Silva
The given diagram depicts the process of generating electricity in a hydropower plant. The process begins with storing water from the river in a high-level reservoir and ends with the transmission of generated power to the national grid.

In general, this hydrostatic power station consists of 3 main units, namely- the high-level reservoir, the power station, and the low-level reservoir. As can be seen in the diagram, during the daytime, intake at the bottom of the dam of the high-level reservoir is kept open to allow water to flow down to the power station and pass through the turbines to the lower reservoir. A power generator coupled to the turbine generates electricity and then it is transmitted to the national grid via power lines. The water is stored in another reservoir next to the power station. The produced electricity is then sent to a national grid through power lines while the excess water runs to a low-level reservoir.

During the nighttime, the stored water is pumped back to the high-level reservoir with the help of the reversible turbine that acts as a water pump. We can see that the intake valve is closed in the nighttime while water is being pumped back.

Kim Ngan
No.
Yatharth Mahawar
Hello.
Yatharth Mahawar
The diagram illustrates the production of electricity from a hydroelectric plant. The process starts with storing the river water in a high-level reservoir and releasing it through pipes in turbines to create electricity, and it ends with storing the remaining water in a low-level reservoir for further use.

Electricity production from a hydroelectric power station consists of 6 stages, and electricity production is done in two shifts - day and night.

In the day shift, the water is collected into the upper reservoir through the river channel which is strengthened by the dam wall. The intake valve remains open during the day time and water flows into a turbine to create enough energy to generate electricity. This electricity is then transferred to the National grid through power lines. The remaining water is transferred to the lower reservoir for later use.

At night time, the lower reservoir water is transferred to the high-level reservoir with the help of a pump. It pumps water upwards by a reversible turbine and repeats the same cycle to generate electricity. Through power generators in a power station, the electricity is supplied to the national grip of power.

Oyon
The diagram illustrates the production of electricity by harnessing the power of water in a hydroelectric power station.

Overall, the electricity generation in this station involves a sophisticated procedure of 6 stages. Moreover, it requires a few instruments such as a reservoir for storing water, reversible turbine, generator, power lines and so on.

The process begins with storing water from the river in the high-level reservoir, which is situated behind a dam. During the day, the dam allows the flow of water via pipes to the turbine that is connected to a generator. The extreme flow of water rotates the turbine, and thus produces electricity in the generator, which is supplied via power lines to the National grid. The used water, on the other hand, is transferred to the low-level reservoir for storage.

When the night comes, the stored water is shifted by means of reversible turbines that help to pump the water uphill to the high-level reservoir which is closed during the night. The river water, on the contrary, is stored at the upper level and starts the process anew when it flows down.
